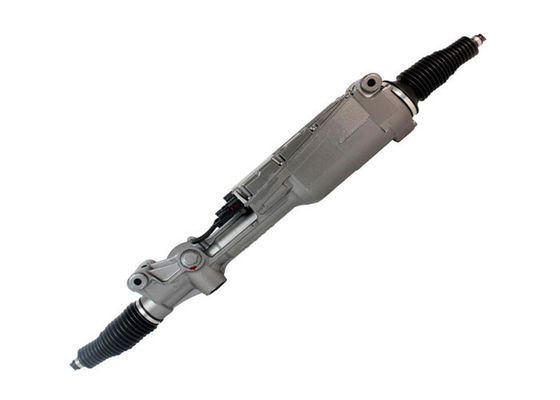

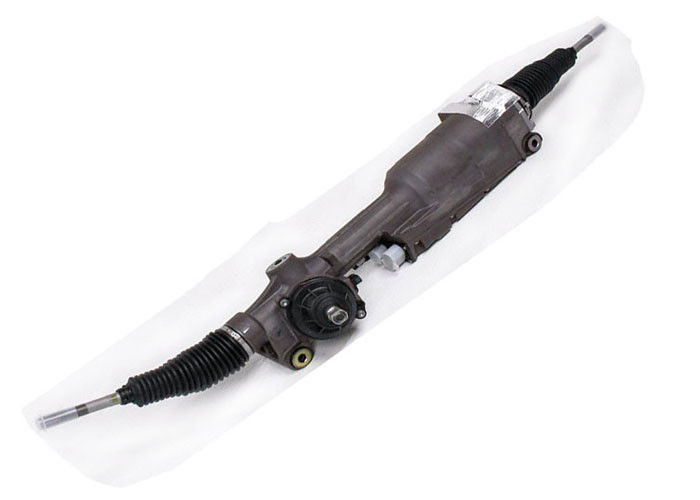

Auto Electric Power Steering Rack And Pinion 4G1423055DG 95B423055AF

Auto Electric Power Steering Rack And Pinion 4G1423055DG 95B423055AF

  • Auto Electric Power Steering Rack And Pinion 4G1423055DG 95B423055AF
  • Auto Electric Power Steering Rack And Pinion 4G1423055DG 95B423055AF
Auto Electric Power Steering Rack And Pinion 4G1423055DG 95B423055AF
Product Details:
Place of Origin: China
Brand Name: AUDI
Certification: iso
Model Number: 4G1423055DG 95B423055AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: usd
Packaging Details: Neutral box , 1 pc in a box
Delivery Time: 3-10 days
Payment Terms: T/T, Western Union
Supply Ability: 10000/month
Contact Now
Detailed Product Description
Product Name: Electric Steering Rack Part Number: 4G1423055DG 95B423055AF
Application: AUDI A8 Q5 Product Range: Electric Steering Gear
LHD /RHD: LHD Warranty: 1 Year
MOQ: 1 PC Packing: Neutral Box , 1 Pc In A Box
Delivery Time: 3-10 Days After Receive The Payment
High Light:

4G1423055DG Power Steering Rack And Pinion


95B423055AF Power Steering Rack And Pinion


LHD Power Steering Rack And Pinion

4G1423055DG 95B423055AF AUDI A8 Q5 Electric Power Steering Rack and Pinion



Product Name

Electric Steering Rack

Car Make



4G1423055DG 95B423055AF

Operating mode

Electrical Power

Steering gear type Rack-and-pinion steering gear
Warranty 30,000KM / 12 months
Packing standard 1. Neutral packing
Neutral Bubble bag + box + Cartons Packing
1pcs/ box 2boxes/Carton
2. Customized Packing
Delivery time 7-20 days after receive payment
1 .OEM quality standard guarantee
2. Competitive price
3. Positive feedback from abroad and domestic customer
4.various kinds of items meet your demand
5. Packing according to specification requirred
6.Flexible and convenient logistic service
7.Professional team
Contact  Phone number /whatsapp : +86-17783396424
Emai : cindy(at)benmagroup.com



1. How does steering rack work


Rack and pinion steering uses a gear-set to convert the circular motion of the steering wheel into the linear motion required to turn the wheels. It also provides a gear reduction, so turning the wheels is easier.

It works by enclosing the rack and pinion gear-set in a metal tube, with each end of the rack sticking out from the tube and connected to an axial rod. The pinion gear is attached to the steering shaft so that when the steering wheel is turned, the gear spins, moving the rack. The axial rod at each end of the rack connects to the tie rod end, which is attached to the spindle.


Most cars need three to four complete turns of the steering wheel to go from lock to lock (from far right to far left). The steering ratio shows you how far to turn the steering wheel for the wheels to turn a certain amount. A higher ratio means you need to turn the steering wheel more to turn the wheels a certain amount and lower ratios give the steering a quicker response.

Some cars use variable ratio steering. This rack and pinion steering system uses a different number of teeth per cm (tooth pitch) in the centre than at the ends. The result is the steering is more sensitive when it is turned towards lock than when it is close to its central position, making the car more maneuverable.

There are two main types of rack and pinion steering systems:

End take off – the tie rods are attached to the end of the steering rack via the inner axial rods.
Centre take off – bolts attach the tie rods to the centre of the steering rack.


2.How does steering rack work with power steering


When a rack and pinion system is connected to a power steering system, the design changes slightly. A cylinder with a piston in the middle is placed in the rack. There is fluid on both sides of the piston. When pressure is placed on the fluid on one side of the piston, it forces the piston to move, which turns the rack and assists with steering.


3.Common steering rack problems


-1 .Very tight steering wheel

If it is becoming more difficult to turn your steering wheel, it’s a sign that there’s probably a problem either with your steering rack or a lack of pressure from the power steering unit. The solution could be as simple as adding more power steering fluid, but it’s best to get it checked.

-2.Leaking power steering fluid
Power steering fluid levels only decrease and result in tight steering if there is a leak. This isn’t a big problem, however the consequences for leaving it too long include causing the steering gearbox and steering rack to overheat or gears to break. It is recommended to get this fixed when it is a simple (and cheap) task. Click here for more information about the causes of these leaks


-3.Grinding noise when steering
A grinding noise from your steering gearbox comes from metal-on-metal contact, suggesting a lack of lubrication. You’ll be able to hear it clearly when you turn either left or right. Ask your mechanic to take a look at the problem, as your steering gearbox could need replacing.


-4.Burning oil smell
Power steering fluid smells like burning oil, so if you smell it when driving it’s a sign that the steering gearbox is too hot. It’s best to stop your car as soon as possible and get the problem looked at it. Driving with an overheated steering gearbox can result in fire.



Factory and Warehouse

Auto Electric Power Steering Rack And Pinion 4G1423055DG 95B423055AF 0

Auto Electric Power Steering Rack And Pinion 4G1423055DG 95B423055AF 1





























































And we all car brand power steering rack ,FORD ,VOLVO ,BMW , BENZ , JEEP , TOYOTA , HONDA , HINO , MITSUBISHI , HYUNDAI , KIA ,  welcome contact me to know more


45510-52140 8D1422065J 53601-SDA-A04 8D1422105A
44200-0K090 4038762
8D1422052B 9014604100


48580一65J51 E5SZ3L547C
MR455282 48580-65J01 45510-06061
43511-61J00 15254060
MR455282 A9014604100 45510-12290
44250-60022 191422055
44200-OK770 7L5422061M 45510-42080
44200-0k060 4420033480
9064600800 A1644600300 45510-42030
