Place of Origin: | China |
Brand Name: | HF |
Certification: | ISO/TS16949 |
Model Number: | 95488651 KY-F929 |
Minimum Order Quantity: | 5pcs |
---|---|
Packaging Details: | Neutral packaging |
Delivery Time: | 1-15 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 10000 pieces Per Months |
Product Name: | Captiva Auto Steering Rack | OEM: | 95488651 KY-F929 |
---|---|---|---|
Guide Drive: | LHD Left Hand Dirve | Material: | Aluminum Material And Rubber |
Weight: | 16KG | Driver Type: | Hydraulic |
Price: | Competitive Price | ||
High Light: | 95488651,Chevrolet Captiva Auto Steering Rack,LHD Hydraulic Auto Steering Rack |
2006 2.0D Chevrolet Captiva (C100 C140) Auto Power Steering Rack 95488651 Steering Gear Box For Opel Antara 2.4 06-11
|
Car parts Steering Rack Gear |
|
Car Make |
For Chevrolet Captiva (C100 C140) 2.0D 2006 |
|
OE | 95488651 | |
Drive Side | LHD (Left-hand drive) | |
Operating Mode | Hydraulic | |
Material | Aluminum & rubber | |
Color | Sliver & Black | |
MOQ | 5 PCS | |
Quality | 100% Test | |
Delivery time | 1-15 days after receive payment | |
Packing standard | 1. Neutral packing Inner Neutral Bubble bag + Outer Cartons 2. Customized packaging as customers Requirements |
|
Advantages |
1 .OEM standard quality 3. Support customization 4.Strong Packing And supports customization |
|
Contact |
Wechat: Cziwan97 Whatsapp : +86-15215082574 Emai :Winnie@benmagroup.com
|

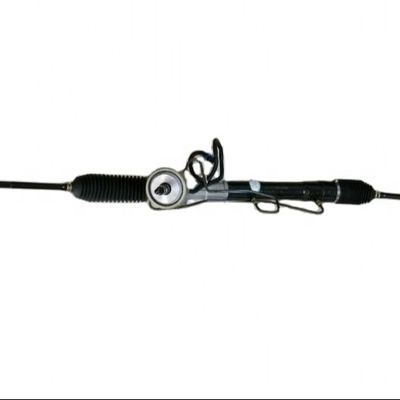

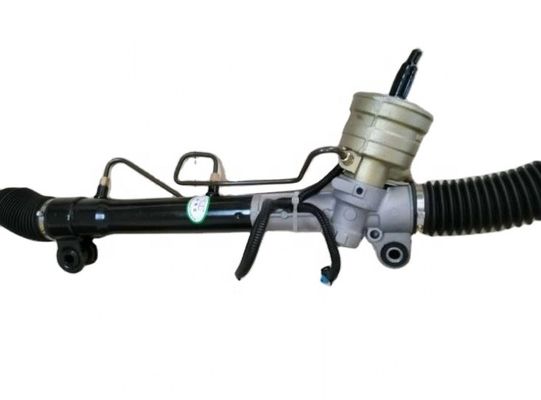

Product Image
More OEM No. for This Steering rack
4808602 | 4818783 | 95488648 |
96026280 | 4817547 | 94567347 |
95488651 | 96026283 | 4818671 |
95954754 | 96626521 | 95026283 |
95599365 | 95599371 |
Reference No.
LIZARTE : 01.13.2600 | LIZARTE : 11-1449 | LIZARTE : 711521449 |
LIZARTE : 142.PS07 | LIZARTE : 66.5225 | LIZARTE : SR23232 |
LIZARTE : DA3110 | LIZARTE : OP9034 | DELCO REMY : DSR2127L |
LIZARTE : SR23275 | LIZARTE : 131049 | DRI : 711521449 |
DRI : 711521478 | ERA Benelux : SR23232 | RE-EX : 503-01972 |
SERCORE : 131049 | ELSTOCK : 11-1449 | ELSTOCK : 11-1478 |
Applicable models
Vehicle model | Year | Engine | Displacement | power | Type |
Chevrolet Captiva (C100, C140) 2.0D | 2007 | LLW | 1991 | 110 | SUV |
Chevrolet Captiva (C100, C140) 2.0 D 4WD | 2006- | LLW | 1991 | 110 | SUV |
Chevrolet Captiva (C100, C140) 2.4 | 2006- | LD9(147CUL4) | 2405 | 100 | SUV |
CAPTIVA (C100, C140) 2.4 4WD | 2006- | LD9(147CUL4) | 2405 | 100 | SUV |
CAPTIVA (C100, C140) 3.2 4WD | 2006- | LU1 | 3195 | 169 | SUV |
ANTARA (L07) 2.0 CDTI | 2007-2011 | Z 20 S | 1991 | 93 | Closed Off-Road Vehicle |
ANTARA (L07) 2.0 CDTI | 2008-2011 | Z 20 DM | 1991 | 93 | Closed Off-Road Vehicle |
ANTARA (L07) 2.0 CDTI 4x4 | 2006-2011 | Z 20 DMH | 1991 | 110 | Closed Off-Road Vehicle |
ANTARA (L07) 2.4 | 2006-2011 | Z 24 XE | 2405 | 104 | Closed Off-Road Vehicle |
ANTARA (L07) 2.4 | 2008-2011 | Z 24 XE | 2405 | 103 | Closed Off-Road Vehicle |
Common Fault determinatio for steering rack
1. Fault determination of heavy steering
(1), first of all, check whether there is lack of oil, whether the filter element is damaged, whether the pipeline is blocked
(2) when the left and right steering feel is different, should have nothing to do with the pump, first check the steering connecting rod mechanism and steering machine.
(3), the steering process feels uneven power, when heavy and light, first check the steering machine.
(4) Test the output pressure of the steering pump with the help of the pressure detection device.In addition: cold car state at low speed direction is heavy or no rotation, step a few throttle or operation for 2/3 minutes can be eliminated, this is due to the oil viscosity at low temperature is large, the centrifugal force at low speed is small, the rotor blade is not thrown out caused by, is a normal phenomenon.
2. Fault determination of oil leakage
(1) There are old oil stains and no signs of development, which is a normal phenomenon.
(2) It is normal to touch the part with oil without obvious humidity.
(3) Oil leakage at the joint of pump and tubing is usually caused by damage of the sealing ring (pad) of connection loose cargo, tightening or replacing the sealing ring (pad).
(4) If the steering pump leaks oil in other locations and there are signs of development, the steering pump needs to be replaced.
3. Fault determination of abnormal sound of steering system
(1) The sound made when the steering wheel is killed is the sound of the steering pump safety valve opening, which is a normal phenomenon.(Note: Don't beat the steering wheel to one side for more than 10 seconds.)
(2) Air leakage in the pipeline of the steering system (there are bubbles in the oil can at this time) and lack of oil will also cause abnormal sound of the steering pump.
(3) in winter, there is abnormal sound in a short time after the cold car starts, and it disappears after the hot car, which is a normal phenomenon.
(4) abnormal sound does not change with the rotation of the steering wheel, which is generally not a problem with the steering pump.
(5) When the steering is abnormal in one direction or a certain position, it is necessary to focus on checking the steering connecting rod mechanism and steering machine.
