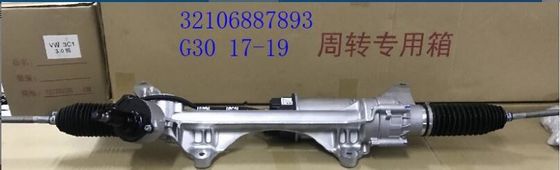

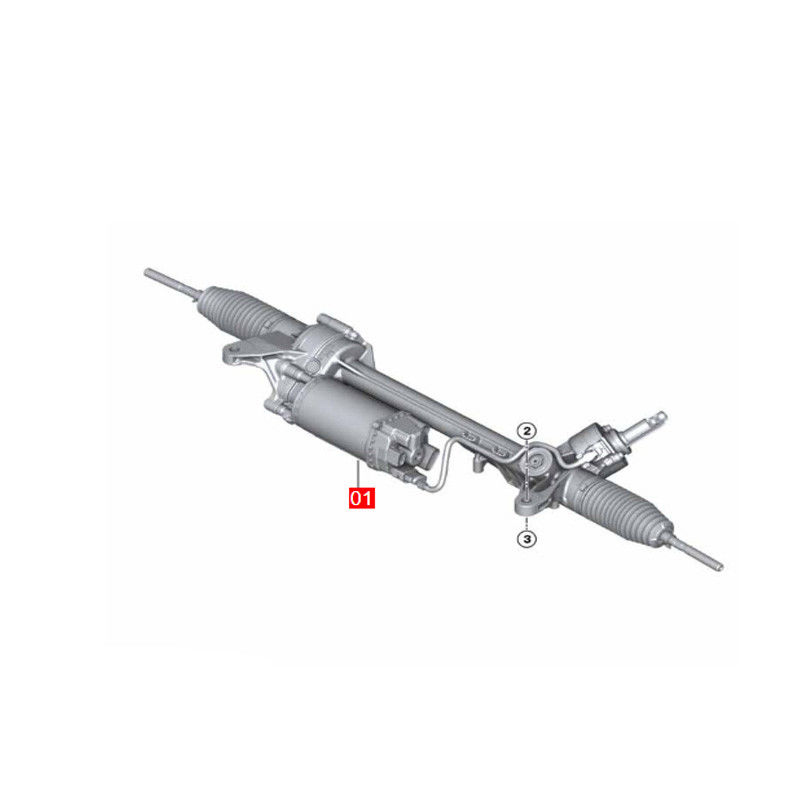

Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19

Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19

  • Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19
  • Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19
Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19
Product Details:
Place of Origin: China
Brand Name: HF
Certification: ISO
Model Number: 32106887893
Payment & Shipping Terms:
Minimum Order Quantity: 10
Delivery Time: 5-8days
Payment Terms: T/T, Western Union
Supply Ability: 1-5000
Contact Now
Detailed Product Description
Make Name: Steering Rack OEM: 32106887893
Brand: HF MOQ: 10
Package: Neutral Packing Payment: T/T
Size:: Standard Size Car Model: Bmw
High Light:

32106887893

,

Bmw G30 Auto Steering Rack

,

LHD Auto Steering Rack



High quality steering rack 32106887893 for bmw G30 17-19

Application:
for bmw G30 17-19
OE NO.:
32106887893
Type
power steering rack
Size:
Standard
Guide Drive:
LHD
Color:
Silver
Packing size:
132X24x26cm



Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19 0





1. How does steering rack work

Rack and pinion steering uses a gear-set to convert the circular motion of the steering wheel into the linear motion required to turn the wheels. It also provides a gear reduction, so turning the wheels is easier.

It works by enclosing the rack and pinion gear-set in a metal tube, with each end of the rack sticking out from the tube and connected to an axial rod. The pinion gear is attached to the steering shaft so that when the steering wheel is turned, the gear spins, moving the rack. The axial rod at each end of the rack connects to the tie rod end, which is attached to the spindle.



Most cars need three to four complete turns of the steering wheel to go from lock to lock (from far right to far left). The steering ratio shows you how far to turn the steering wheel for the wheels to turn a certain amount. A higher ratio means you need to turn the steering wheel more to turn the wheels a certain amount and lower ratios give the steering a quicker response.

Some cars use variable ratio steering. This rack and pinion steering system uses a different number of teeth per cm (tooth pitch) in the centre than at the ends. The result is the steering is more sensitive when it is turned towards lock than when it is close to its central position, making the car more maneuverable.

There are two main types of rack and pinion steering systems:

End take off – the tie rods are attached to the end of the steering rack via the inner axial rods.
Centre take off – bolts attach the tie rods to the centre of the steering rack.



2.How does steering rack work with power steering



When a rack and pinion system is connected to a power steering system, the design changes slightly. A cylinder with a piston in the middle is placed in the rack. There is fluid on both sides of the piston. When pressure is placed on the fluid on one side of the piston, it forces the piston to move, which turns the rack and assists with steering.



3.Common steering rack problems



-1 .Very tight steering wheel
If it is becoming more difficult to turn your steering wheel, it’s a sign that there’s probably a problem either with your steering rack or a lack of pressure from the power steering unit. The solution could be as simple as adding more power steering fluid, but it’s best to get it checked.

-2.Leaking power steering fluid
Power steering fluid levels only decrease and result in tight steering if there is a leak. This isn’t a big problem, however the consequences for leaving it too long include causing the steering gearbox and steering rack to overheat or gears to break. It is recommended to get this fixed when it is a simple (and cheap) task. Click here for more information about the causes of these leaks

-3.Grinding noise when steering
A grinding noise from your steering gearbox comes from metal-on-metal contact, suggesting a lack of lubrication. You’ll be able to hear it clearly when you turn either left or right. Ask your mechanic to take a look at the problem, as your steering gearbox could need replacing.

-4.Burning oil smell
Power steering fluid smells like burning oil, so if you smell it when driving it’s a sign that the steering gearbox is too hot. It’s best to stop your car as soon as possible and get the problem looked at it. Driving with an overheated steering gearbox can result in fire.



Benma Group, specializing in the production of steering machines, Korean models, European and American models, welcome inquiry

Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19 1
Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19 2
Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19 3
Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19 4
57700-2S100
577003A010
NF-HY-29RN
57700-1C100
57700-1C700
57710-25000
57710-22101
57705-43011
57705-43010
57700-4F000
57705-43011
57700-4A600
57700-4A500
57100-43003
57700-1E100
57700-4H100
56300-4A500
577002B000/577002B100
57700-1F000
5771017300
57700-2C000
57700-2E800
57700-2D100
577002B100
57700-2D000
57700-1F000
57700-38200
57700-39000
577002B100
57700-1Z000
57700-1F000 57700-2E800
57710-26200
57700-26200
5770007100
57700-1Z000
NF-HY-23RN
57710-25000
57710-22101
5770007100
NF-HY-08RN
NF-HY-24RN
57700-2S100
5650007600
5770038020
57710-26200
57700-26200
57700-1E100
56500-3X001
56500-3X200
57710-25010
577002B000/577002B100
57700-2C000
57700-2W000
57710-25010
57700-2B210
57700-2S100
577004L000
577104L000



Welcome to inquire us for more details!



Low price LHD Auto Steering Rack 32106887893 For Bmw G30 17-19 5

Our service

1. Payment method
A. The goods will be shipped after the full payment is received.
B. Prepaid order and delivery: (30% deposit in advance, delivery)
2. Delivery time and stocking time
Spot: delivery within 1-2 days after payment; timely delivery
Stocking: Shipped within one week; will definitely be delivered within the time you require
3. Delivery method
Choose a fast and convenient way of freight according to the needs of customers and the actual situation of the goods.
4. After-sales service
After delivery, our logistics staff will give you feedback on logistics information in time, telling you the logistics telephone number, tracking number, and if you have any problems in logistics, you can contact our logistics staff at any time. Our staff can guarantee 7*24 hours You serve.
