|Place of Origin:||Chongqing , China|
|Model Number:||GY6 50cc 125cc 150cc|
|Minimum Order Quantity:||1000 pieces|
|Packaging Details:||Standard Carton Box,100 pcs/carton,or according to your requirement.|
|Delivery Time:||3-7 work days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200000 sets per month|
|Product Name:||Motorcycle Ignition CDI||Material:||Plastic+Metal|
|Item Model:||GY6 50cc 125cc 150cc||Color:||Black|
|Working Voltage:||DC 12V||Advance Angle Speed:||1900 ± 200r/min|
|Product Type:||DC Digital CDI||Rotate Speed Range In Continuous Ignition:||210 R/min≤11000 R/min|
motorcycle body parts,
motorbike aftermarket parts

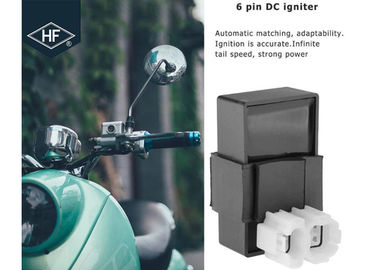

Motorcycle Accessories Parts Scooter Ignition 6Pins CDI Box For GY6 50cc 125cc 150cc ATV Go Kart
The Motorcycle Ignition System consists of a magnet ignition coil, CDI assembly, ignition coil, Trigger coil and spark plug. When working, the ignition and charging coils generate alternating current with the rotation of the flywheel of the Magneto. When the trigger head on the flywheel goes to the corresponding position of the Trigger coil, the SCR inside the CDI is in the cut-off state, and the AC generated by the ignition and charging coil is charged to the capacitor by the diode, the voltage at both ends of the capacitor increases sharply; to the ignition time, the trigger head is transferred to the corresponding position with the Trigger coil, which produces the signal voltage, turn on the thyristor. The discharge current of the capacitor is induced to produce high voltage current by the ignition coil after the SCR and ignition primary coil, which makes the spark plug discharge ignition.
|Motorcycle Ignition System|
|GY6 50cc 125cc 150cc ATV Go Kart Scooter|
Rotate speed range in continuous ignition
Advance Angle Speed
|1900 ± 200r/min|
Working temperature range
6. Ignition energy and stability
7. Strong resistance to interference
8. Strong environment adaptation,high reliability
9. Stable inlet angle,low speed & high speed ignition performance
,,...................... Product Detail .........................
About Our Company:
Benma Group Co., Ltd. is located in Anhui,China Motorcycle parts industry, specializing in the production of motorcycle CDI unit, regulator, flasher and other electrical products.
And provide cheap motorcycle accessories, exports to Europe and South America.
The company was founded in 1986, the main products are: motorcycles with various types of igniter, rectifier, relays, ignition coil, flash buzzer, and a variety of voice prompts, reversing speakers, harness protector, cell phone charger The My company's products mainly for the two rounds, three motorcycles OEMs supporting, our customers are Honda,Yamaha,Suzuzki,Kawasaki,Haojue,and other motorcycle OEMs. After nearly 30 years of development, the company has now become well-known domestic enterprises with the industry.
Standard export packing or according to the customers' request.
Products box:80*60*55 mm
Products has box packing:Packing Size: 100pcs/ctn , 420*335*230mm
Products No box packing:Packing Size: 100pcs/ctn , 380*285*160 mm
1. Please confirm the shipping address first before ordering and pay as soon as possible.
2. The parcel will be shipped out within 3 business days after confirmed the payment. And we will make sure your item with a safety package.
3. The parcel will be shipped by Economy Shipping of China Post. The shipping time varies to different countries. Please check the below shipping time for reference.
1. Are you factory?
Re: Yes, Our factory established in 1983 and now we have our own more than 5 factory , 10 production line and stuff more than 400 people ,Most of our factory are use automatic machine to increase the output.
2. What is your MOQ?
Re: Our MOQ depend on the product, Generally speaking the more you order the production cost will be less, But small order is also Acceptable.
3. How to make sure your quality level?
Re: All our product has been sold more than 10 years in 40 countries now we have our solid partner to selling every month , In our production line all product been tested before packing to make sure the quality level ,In case any quality problem during transpotation we will responsible for it.
4. There are so many Models i am not sure which one is i need?
Re: Please do not worry we have experienced sales man to guide you which product is popular and which one is hard to sell,we will give you professional guide just contact us for more details.
5. How to place order?
Re: Please send us inquiry online ,we will get back to you by email after price discussion we shall send you invoice for payment and then we will take care of the shipping to send to your port,Any question of international business we will take care it for you.
6. Can i visit your factory and samples?
Re: yes we welcome you to visit our factory anytime, ALso sample we offer free sample,pls contact us for more details.
